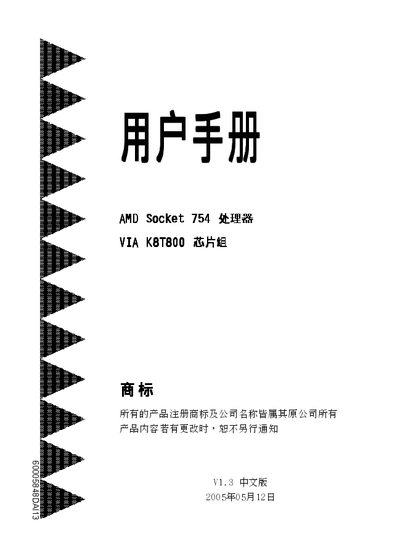

This is the user manual for the VIA K8T800 motherboard. It mainly introduces the motherboard's specifications, installation, setup, driver installation and other contents.
This manual provides an overview of the VIA K8T800 motherboard, including its supported AMD Socket 754 processors, DDR400 memory, and integrated peripherals such as USB2.0, audio, and LAN interfaces. It describes the hardware layout, component locations, and key specifications.
The document also details BIOS configuration, RAID options, and step‑by‑step installation procedures, along with troubleshooting tips such as clearing CMOS and handling component failures. This manual is written in Chinese.
| Memory Type | DDR400 |
|---|---|
| CPU Socket | Socket 754 |
| Chipset | VIA K8T800 |
| LAN Interface | Gigabit Ethernet (GbE LAN) |
Press the reset button or use the Insert jumper to clear the CMOS as described in the troubleshooting section.
The board supports S‑ATA RAID functionality, including RAID 0, RAID 1, and JBOD modes.
