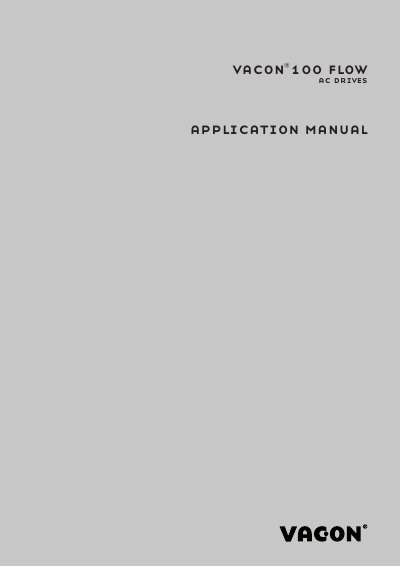

The Vacon 100 Flow AC Drives Application Manual provides detailed instructions on setup, parameters, diagnostics, and troubleshooting for the VACON® AC drive.
This application manual describes the functions and usage of the Vacon 100 Flow AC drive. It follows the drive's menu structure and includes a quick startup guide, wizards for configuring applications, user interface details, monitoring and parameter menus, diagnostics, I/O and hardware settings, and user‑level options.
Key features covered are the various application wizards (Standard, HVAC, PID control, Multi‑pump), monitoring menus, parameter tables, fault tracing, and optional functions such as PID control, multi‑pump management, and energy‑saving modes. The manual also provides default parameter values and detailed appendices for reference.
| Maximum output frequency | 320 Hz |
|---|
The Quick Startup Guide explains how to start work with the control panel.
Wizards are provided for Standard, HVAC, PID control, and both single‑drive and multidrive multi‑pump applications.
Use the Resetting a fault function in the User Interfaces section.
