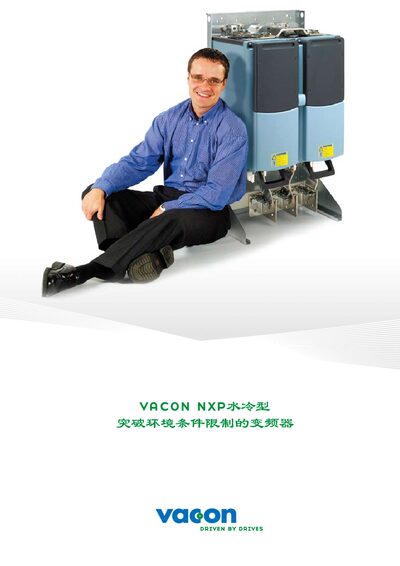

The Vacon NXP water‑cooled inverter manual provides specifications, installation, operation, and safety information for the compact, high‑reliability drive.
This manual describes the Vacon NXP water‑cooled inverter, a compact, high‑performance drive designed for applications where space is limited or air‑cooling is impractical. It highlights the inverter's ability to save up to 70% space compared with air‑cooled units, its IP00 protection rating, and its suitability for harsh environments such as shipboard, offshore platforms, pulp‑and‑paper, and mining.
The document includes technical data, environmental limits, safety functions, communication options, ordering information, and application examples. Detailed tables list power ranges, input voltages, current ratings, dimensions, and cooling performance, while sections on installation and configuration guide users through wiring, cooling system setup, and integration with external components such as LCL filters and active front ends. This manual is written in Chinese.
| Power range | 7.5 kW – 5000 kW |
|---|---|
| Input voltage (AC) | 380 V – 420 V (also 525 V – 690 V) |
| Protection rating | IP00 |
| Air‑loss percentage (water‑cooled) | 0.15 % of rated power |
The inverter is available from 7.5 kW up to 5000 kW.
All power ranges have an IP00 protection rating.
Supported fieldbus options include Profibus, Modbus, CANopen, DeviceNet, RS485‑Multiprotocol, LonWorks, and others.
