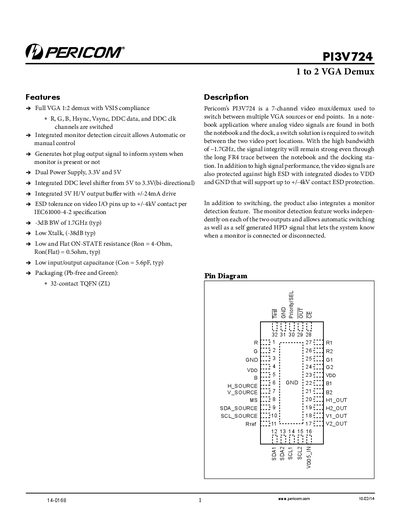

Pericom PI3V724 1 to 2 VGA Demux Datasheet

The Pericom PI3V724 is a 7-channel video mux/demux supporting high bandwidth and integrated monitor detection for switching between multiple VGA sources.

Brand: Pericom
Document type: Datasheet
Language: English
Pages: 14
File format: PDF
File size: 1.6 MB
Published: 15 October, 2026
Updated: 15 October, 2026
MD5 checksum: AFC0DD142D21280367B1B0695685B83A
PDF: Pericom PI3V724 1 to 2 VGA Demux Datasheet PDF

About this manual

Pericom's PI3V724 is a 7-channel video multiplexer/demultiplexer designed to switch between multiple VGA sources or endpoints. It features a high bandwidth of approximately 1.7GHz, ensuring strong signal integrity even through long traces. The device includes integrated ESD protection up to +/-4kV and monitor detection circuits that support both automatic and manual switching modes.

What's inside

Description
Features
Pin Diagram
Block Diagram
Pinout Table
Automatic Switching Scheme
Application Note
Port Selection

Specifications

-3dB Bandwidth	~1.7GHz (typ)
ESD Tolerance	+/-4kV contact per IEC61000-4-2 specification
On-State Resistance (Ron)	4-Ohm
Input/Output Capacitance	5.6pF (typ)

Frequently asked questions

What is the bandwidth of the PI3V724?

The device has a -3dB bandwidth of approximately 1.7GHz.

Does the PI3V724 support automatic switching?

Yes, it integrates a monitor detection circuit that allows for automatic or manual control.

Download PDF (1.6 MB)
