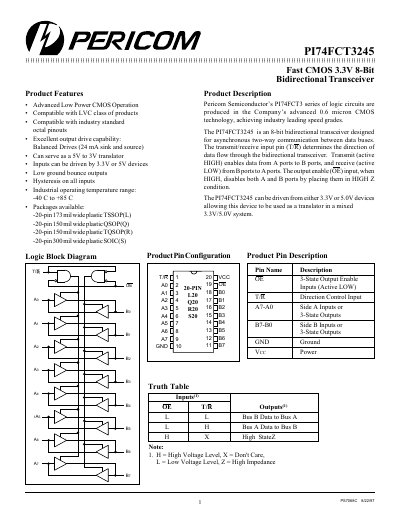

This datasheet provides detailed information about the PI74FCT3245, including its package, pin configuration, and functional features.
The PI74FCT3245 is an 8‑bit bidirectional transceiver designed for asynchronous two‑way communication between data buses. It operates from 3.3 V or 5 V devices, offers balanced 24 mA sink/source drive, and includes input hysteresis for noise immunity. The device is available in several 20‑pin plastic packages and is rated for -40 °C to +85 °C operation.
Electrical specifications include guaranteed logic HIGH levels of 2.2 V to 5.5 V, LOW levels down to -0.5 V, quiescent supply current as low as 0.1 pA, and propagation delays around 1.5 ns. Maximum output current is 120 mA and the part can be stored from –65 °C to +150 °C.
| Operating Temperature Range | -40 °C to +85 °C |
|---|---|
| Package Options | 20‑pin TSSOP, QSOP, TQSOP, SOIC |
| Output Drive Capability | Balanced 24 mA sink and source |
| Input Hysteresis | 150 mV |
It can be stored from –65 °C up to +150 °C.
It is available in 20‑pin TSSOP, QSOP, TQSOP, and SOIC packages.
