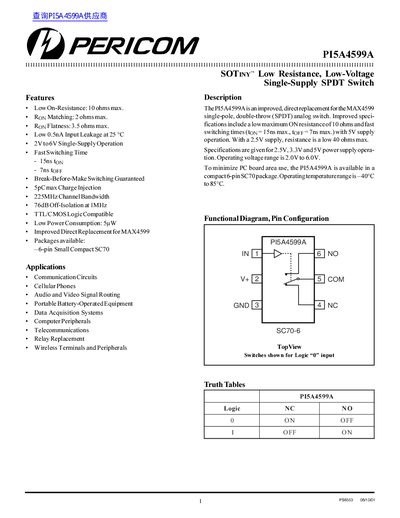

The PI5A4599A is a low‑resistance, low‑voltage, single‑supply SPDT analog switch designed as a direct replacement for the MAX4599. It offers a maximum on‑resistance of 10 Ω, fast switching (15 ns turn‑on, 7 ns turn‑off), and low power consumption, making it suitable for communication circuits, cellular phones, audio/video routing, and portable equipment.
Key specifications include a supply voltage range of 2.0 V to 6.0 V, 76 dB off‑isolation at 1 MHz, and operation in a compact 6‑pin SC70 package over an ambient temperature range of –40 °C to 85 °C. Detailed electrical parameters are provided for 2.5 V, 3.3 V, and 5 V supply conditions, along with test circuits and timing diagrams.
| On‑Resistance (Ron) max | 10 Ω |
|---|---|
| Turn‑On Time (ton) max | 15 ns |
| Turn‑Off Time (toff) max | 7 ns |
| Off‑Isolation at 1 MHz | 76 dB |
| Supply Voltage Range | 2.0 V to 6.0 V |
| Power Consumption | 5.1 W |
| Operating Temperature Range | -40 °C to 85 °C |
The device has a maximum on‑resistance of 10 Ω.
Turn‑on time is up to 15 ns and turn‑off time is up to 7 ns.
It operates from 2.0 V to 6.0 V.
