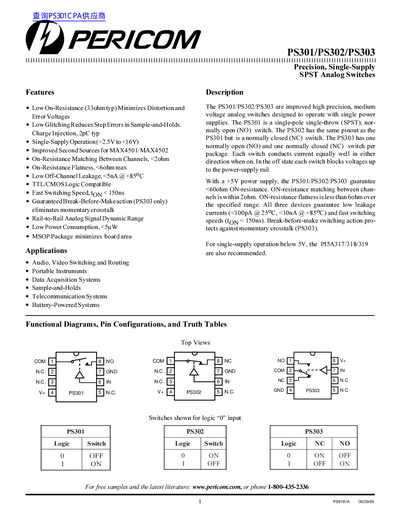

The document describes the PS301/PS302/PS303 family of improved high-precision, medium-voltage analog switches designed for single-supply operation. The PS301 is a normally open (NO) switch, while the PS302 is a normally closed (NC) switch with the same pinout. The PS303 combines one NO and one NC switch per package.
| On-Resistance (Typical) | 33 ohm |
|---|---|
| Charge Injection | 2pC typ |
| Supply Voltage Range | +2.5V to +16V |
| Off-Channel Leakage (Max) | <5nA @+85°C |
| Switching Speed (ton) | < 150ns |
The PS301 is a normally open (NO) switch, while the PS302 has the same pinout but is a normally closed (NC) switch.
Yes, the PS303 guarantees a break-before-make action that eliminates momentary crosstalk.
The on-resistance matching between channels is within 2 ohm.
