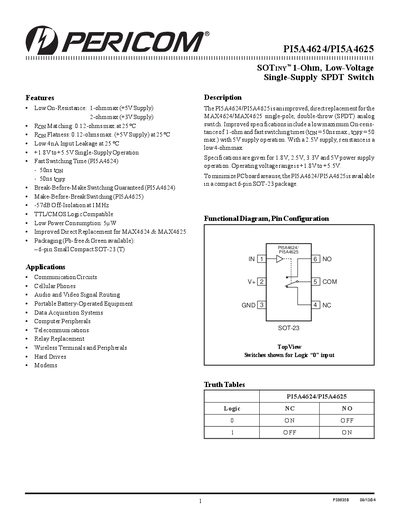

The PI5A4624/PI5A4625 is an improved version of the MAX4624/MAX4625, which is a low-voltage single-supply switch with features such as low resistance, fast switching times, and low power consumption.
The Pericom PI5A4624/PI5A4625 is an improved, direct replacement for the MAX4624/MAX4625 single-pole, double-throw (SPDT) analog switch. It features a low maximum On-resistance of 1-ohm and fast switching times with operation from +1.8V to +5.5V supplies.
The device is available in a compact 6-pin SOT-23 package designed to minimize PC board area. The PI5A4624 guarantees break-before-make switching, while the PI5A4625 offers make-before-break switching.
| On-Resistance (Ron) | 1-ohm max (+5V Supply) |
|---|---|
| On-Resistance Match | 0.12-ohms max at 25°C |
| Input Leakage Current | 4nA at 25 °C |
| Supply Voltage Range | +1.8V to +5.5V |
| Switching Time (ton) | 50ns max |
| Off-Isolation | -57dB at 1MHz |
| Package Type | 6-pin SOT-23 (T) |
The PI5A4624 guarantees break-before-make switching, while the PI5A4625 provides make-before-break switching.
The maximum On-resistance is 1-ohm when operating with a +5V supply.
