This manual is the instruction manual for the PS7008C product. It aims to help users understand the basic functions, operating methods and troubleshooting methods of the product.

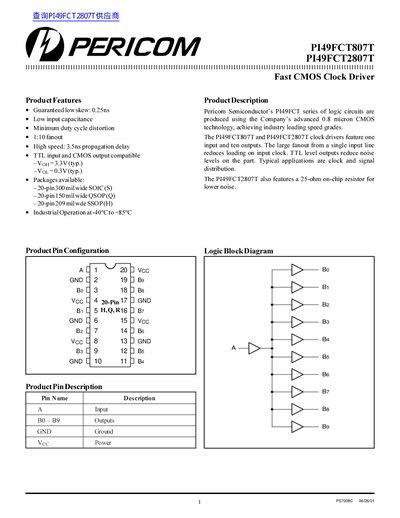

The PI49FCT series from Pericom Semiconductor provides fast CMOS clock drivers with one input and ten outputs, offering low skew, low input capacitance and high fan‑out. The devices operate from –40 °C to +85 °C and are available in three 20‑pin packages (SOIC, QSOP, SSOP).\n\nThe datasheet details electrical characteristics such as guaranteed 0.25 ns low skew, 3.5 ns propagation delay, input capacitance of 6 pF, output capacitance of 8.2 pF, and supply voltage ranges of –0.5 V to +7.0 V. Maximum ratings, power‑supply behavior, switching performance and package dimensions are also provided.
| Low skew (guaranteed) | 0.25 ns |
|---|---|
| Propagation delay (high speed) | 3.5 ns |
| Output capacitance | 8.2 pF |
| Supply voltage range (inputs & VEC only) | -0.5 V to +7.0 V |
| Fan‑out | 1:10 |
The device guarantees a low skew of 0.25 ns.
The devices are rated for industrial operation from –40 °C to +85 °C.
