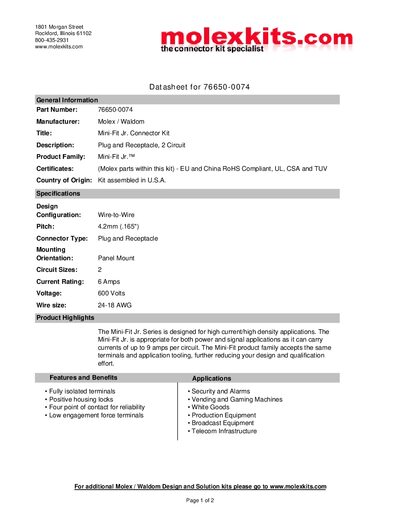

Datasheet for Molex Mini-Fit Jr. Connector Kit 76650-0074, detailing specifications, features, and bill of materials.
The Molex Mini-Fit Jr. Connector Kit (Part No. 76650-0074) is a high‑current, high‑density solution for power and signal applications. The kit includes crimp‑type terminals, a 2‑circuit free‑hanging receptacle, and panel‑mount plugs, all assembled in the USA.
Designed for up to 600 V and 9 A per circuit, the kit is RoHS‑compliant and meets UL, CSA, and TUV standards. It is suited for vending and gaming machines, white goods, production equipment, broadcast equipment, and telecom infrastructure.
| Part Number | 76650-0074 |
|---|---|
| Current Rating | up to 9 A per circuit |
| Voltage Rating | 600 V |
| Wire Size | 24‑18 AWG |
| Number of Circuits | 2 |
The kit can carry currents of up to 9 amps per circuit.
The kit is rated for up to 600 volts.
It is suitable for vending and gaming machines, white goods, production equipment, broadcast equipment, and telecom infrastructure.
No, tools are not included; they must be ordered separately.
