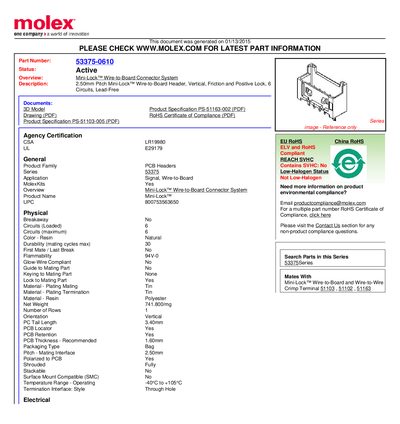

The Molex 53375-0610 Mini-Lock wire-to-board connector is a 2.50 mm pitch vertical header with 6 circuits, lead‑free, RoHS‑compliant, rated for 3 A/250 V.
The Mini-Lock™ Wire-to-Board Connector System (part number 53375-0610) is a 2.50 mm pitch vertical header that provides up to six circuits in a lead‑free, RoHS‑compliant package. It is designed for through‑hole mounting with a 3.40 mm tail length and a recommended PCB thickness of 1.60 mm.
Key features include a maximum current of 3 A per contact, a voltage rating of 250 V, an operating temperature range of –40 °C to +105 °C, and a polyester resin body with tin‑plated termination. The connector is supplied in a bag packaging and is fully stackable for efficient board layout.
| Pitch | 2.50 mm |
|---|---|
| Number of Circuits | 6 (maximum) |
| Orientation | Vertical |
| Operating Temperature Range | -40 °C to +105 °C |
| Maximum Current per Contact | 3 A |
| Maximum Voltage | 250 V |
| Termination Plating | Tin |
| Resin Material | Polyester |
| Net Weight | 741.800 mg |
| Recommended PCB Thickness | 1.60 mm |
Each contact can carry up to 3 A of current.
It operates from –40 °C up to +105 °C.
Yes, it complies with EU, China, and ELV RoHS requirements.
The connector supports up to six circuits.
