The Molex Nano-Fit™ 2.50 mm pitch power connector series provides fully protected, low‑force, keyed headers rated for 250 V and 6.5 A.

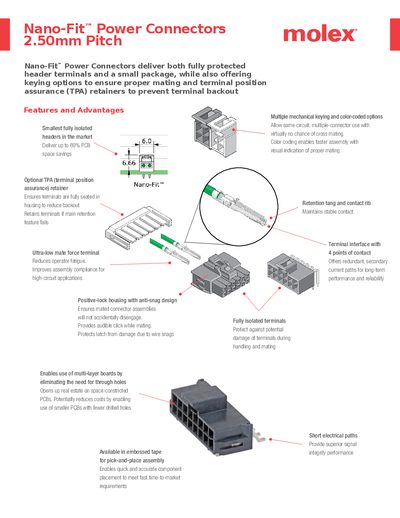

The Nano-Fit™ Power Connectors deliver fully protected header terminals in a compact 2.50 mm pitch package. Optional TPA retainers ensure terminals stay seated, while ultra‑low mate force and positive‑lock housing reduce operator fatigue and prevent accidental disengagement. Mechanical keying, color‑coding, and redundant contact points improve assembly reliability and signal integrity.
Designed for consumer/home appliances, telecommunications, automotive, aerospace, and medical equipment, the series is available in reel, tray, bulk, or embossed‑tape packaging. Electrical ratings include 250 V AC/DC, 6.5 A current, 1600 V dielectric withstand, and 1000 MΩ insulation resistance. Mechanical specifications feature a 2.5 N insertion force and 3 N mating force. Ordering information and part numbers are listed on the second page.
| Maximum Voltage | 250 V AC/DC |
|---|---|
| Maximum Current | 6.5 A |
| Contact Resistance (Gold) | 10 mΩ |
| Dielectric Withstanding Voltage | 1600 V |
| Contact Insertion Force | 2.5 N |
| Mating Force | 3 N |
| Operating Temperature Range | -40 °C to +115 °C |
| Receptacle Housing Material | Nylon (UL 94 V‑0) |
| Header Housing Material | LCP (UL 94 V‑0) |
The connector is rated for a maximum current of 6.5 A.
A mating force of 3 N is required.
Yes, the connectors are RoHS compliant.
The dielectric withstanding voltage is 1600 V.
