The Molex 0903250004 Picoflex PF-50 Header is a 1.27 mm pitch, vertical low‑profile PCB header with 4 circuits and detailed specifications.
The Picoflex® PF-50 Header (part number 0903250004) is a 1.27 mm (0.050") pitch, vertical, low‑profile PCB header designed for wire‑to‑board connections. It features four circuits, a brass metal body with tin plating, and a recommended PCB thickness of 1.60 mm.

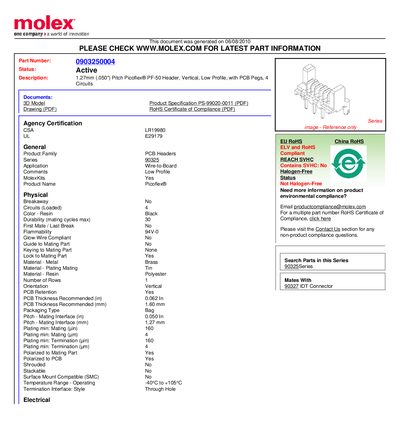

The document provides the full product specification, including mechanical dimensions, material details, electrical limits, environmental compliance, and packaging information. It also lists related documents such as 3D models, drawings, and RoHS certificates.
| Pitch (Mating Interface) | 1.27 mm |
|---|---|
| Number of Circuits | 4 |
| Orientation | Vertical |
| Material (Metal) | Brass |
| Plating Minimum (Mating) | 4 µm |
| Operating Temperature Range | -40°C to +105°C |
| Maximum Current per Contact | 1.2 A |
| Maximum Voltage | 250 V |
| Durability (Mating Cycles Max) | 30 |
| Recommended PCB Thickness | 1.60 mm |
The header has a 1.27 mm (0.050") pitch.
It provides four circuits.
The maximum current per contact is 1.2 A.
It operates from –40 °C up to +105 °C.
