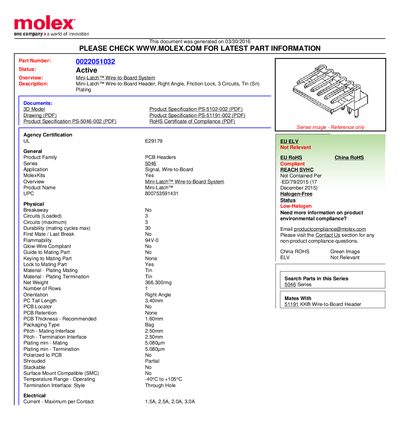

The Molex 0022051032 Mini-Latch wire‑to‑board header is a right‑angle, friction‑lock connector with 3 circuits, up to 1.5 A per contact and a 250 V rating.
The Mini‑Latch™ 0022051032 is a right‑angle, friction‑lock wire‑to‑board header designed for 3‑circuit applications. It features a tin‑plated termination, a 2.50 mm pitch on both mating and termination interfaces, and a recommended PCB thickness of 1.60 mm.
Key electrical ratings include a maximum voltage of 250 V and a current rating of up to 1.5 A per contact (with higher values listed for specific configurations). The connector is rated for 30 mating cycles and operates from –40 °C to +105 °C. Compliance information such as RoHS and UL certification is also provided.
| Number of Circuits | 3 |
|---|---|
| Maximum Voltage | 250 V |
| Maximum Current per Contact | 1.5 A (up to 3.0 A in some versions) |
| Operating Temperature Range | -40 °C to +105 °C |
| Mating Cycles (Durability) | 30 |
| Pitch (Mating & Termination) | 2.50 mm |
| Plating Thickness (minimum) | 5.080 µm |
| Net Weight | 366.300 mg |
The connector is rated for a maximum voltage of 250 V.
It operates from –40 °C up to +105 °C.
The part supports up to three circuits.
The recommended PCB thickness is 1.60 mm.
