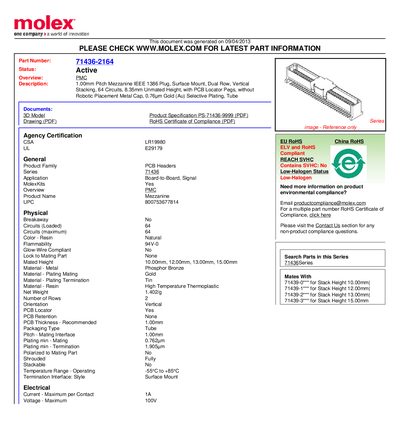

Detailed specifications for the Molex 71436-2164 mezzanine connector, covering dimensions, ratings, materials and performance.
The Molex 71436-2164 is a 1.00 mm pitch board‑to‑board mezzanine connector designed for vertical stacking. It provides 64 circuits, optional locating pegs, and is available in multiple stack‑height options (10 mm to 15 mm). The connector features a phosphor‑bronze body, gold selective plating on contacts, and a tin‑plated resin termination.
The specification includes electrical ratings (250 V AC, up to 1 A per contact), operating temperature range from –55 °C to +85 °C, and extensive mechanical and environmental test data such as contact resistance, insulation resistance, vibration, shock, humidity and thermal aging. Processing guidelines for soldering and drying are also provided.
| Pitch | 1.00 mm |
|---|---|
| Number of Circuits | 64 |
| Mating Height Options | 10 mm, 12 mm, 13 mm, 15 mm |
| Material (Contacts) | Phosphor Bronze |
| Contact Plating | 0.76 µm Gold (selective) |
| Termination Plating | 1.905 µm Tin |
| Voltage Rating | 250 V AC (RMS) contact‑to‑contact |
| Current Rating | 0.5 A (30 °C rise) or 1 A (five adjacent circuits) |
| Operating Temperature Range | -55 °C to +85 °C |
| Contact Resistance (Low Level) | ≤ 30 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
The connector is rated for up to 250 V AC (RMS) contact‑to‑contact.
It can operate from –55 °C up to +85 °C.
It provides a maximum of 64 circuits.
Stack heights of 10 mm, 12 mm, 13 mm, and 15 mm are offered.
