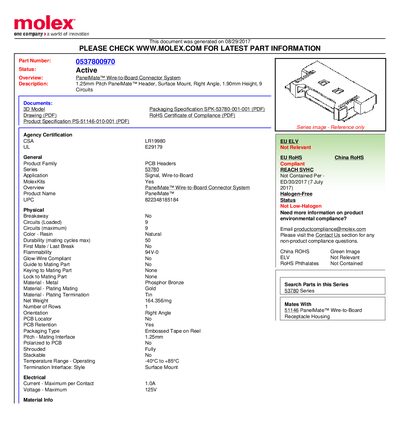

Molex 0537800970 PanelMate™ connector specification sheet with dimensions, electrical ratings, and compliance details.
The PanelMate™ Wire-to-Board Connector System (part 0537800970) is a 1.25 mm pitch, surface‑mount, right‑angle header with a 1.90 mm height and nine circuits. It features a phosphor‑bronze body, gold mating surface, and tin termination, designed for up to 1.0 A per contact and 125 V maximum voltage.
The connector operates from –40 °C to +85 °C, is RoHS compliant, and is supplied in embossed tape on reel packaging. Reference drawings, product specifications, and compliance certificates are provided for design and procurement.
| Pitch | 1.25 mm |
|---|---|
| Height | 1.90 mm |
| Number of Circuits | 9 |
| Maximum Current per Contact | 1.0 A |
| Maximum Voltage | 125 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Material | Phosphor Bronze |
| Mating Plating | Gold |
| Termination Plating | Tin |
| Orientation | Right Angle |
| Net Weight | 164.356 mg |
| Number of Rows | 1 |
| PCB Retention | Yes |
| Packaging Type | Embossed Tape on Reel |
The part number is 0537800970.
Each contact can carry up to 1.0 A.
The connector operates from –40 °C to +85 °C.
Yes, it is RoHS compliant.
