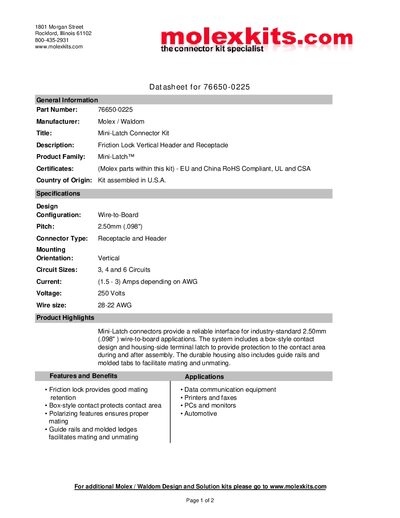

The Molex 76650-0225 Mini-Latch Connector Kit datasheet details specifications, features, and component list for 2.50 mm pitch wire‑to‑board connectors.
The Mini‑Latch Connector Kit (part 76650-0225) provides a reliable 2.50 mm (0.098") wire‑to‑board interface. It supports 3, 4, and 6 circuit configurations, offers friction‑lock mating retention, box‑style contacts, and polarizing features to ensure proper mating. Typical applications include data communication equipment, printers and faxes, PCs and monitors, and automotive systems.
The kit is assembled in the U.S.A. and includes a variety of Molex parts such as vertical headers, receptacles, and crimp terminals. Detailed part numbers and quantities are listed, and recommended Molex hand‑crimp tools are noted. All components comply with RoHS, UL, and CSA standards.
| Wire size | 28-22 AWG (1.5 - 3) A |
|---|---|
| Voltage rating | 250 V |
| Circuit sizes | 3, 4, and 6 circuits |
It is suitable for data communication equipment, printers and faxes, PCs and monitors, and automotive applications.
The kit includes various Molex parts such as vertical headers, receptacles, and crimp terminals for 3, 4, and 6 circuit configurations, with part numbers like 50802-9101 and 51191-0300 listed in the bill of materials.
