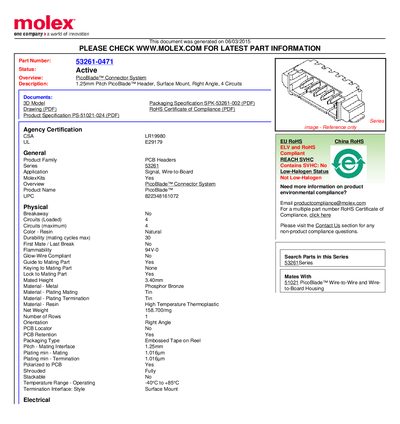

The Molex 53261-0471 PicoBlade connector is a 1.25 mm pitch, right‑angle, surface‑mount header with 4 circuits and detailed specifications.
The PicoBlade™ Connector System (part number 53261-0471) is a right‑angle, surface‑mount header with a 1.25 mm pitch and four circuits. It is designed for signal and wire‑to‑board applications and features a low‑profile mated height of 3.40 mm.
The connector complies with RoHS, REACH, and UL certifications, and is packaged on embossed tape on a reel. Electrical ratings include a maximum current of 1.0 A per contact and a maximum voltage of 125 V. The operating temperature range is –40 °C to +85 °C.
| Pitch | 1.25 mm |
|---|---|
| Maximum Current per Contact | 1.0 A |
| Maximum Voltage | 125 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Mated Height | 3.40 mm |
The connector can handle up to 1.0 A per contact.
The pitch is 1.25 mm.
It operates from –40 °C to +85 °C.
