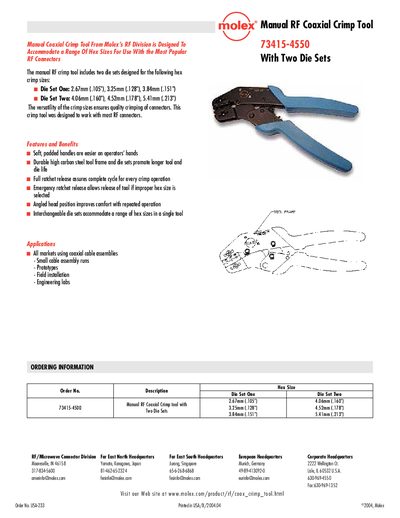

This document introduces the manual RF coaxial crimp tool 73415-4550 from Molex's RF division, which includes two die sets to accommodate a range of hex sizes for use with the most popular RF connectors. The tool is designed to work with most RF connectors and offers versatility in crimp sizes to ensure quality.
The manual covers the RF coaxial crimp tool designed by Molex’s RF Division. It includes two interchangeable die sets: Die Set One for 2.67 mm, 3.25 mm and 3.84 mm hex sizes, and Die Set Two for 4.06 mm, 4.52 mm and 5.41 mm hex sizes.
Features and benefits include soft padded handles, a durable high‑carbon‑steel frame, full ratchet release, emergency ratchet release, and an angled head for comfort. The tool is suitable for all markets using coaxial cable assemblies, including prototypes, field installations, and engineering labs.
| Die Set One hex sizes | 2.67 mm, 3.25 mm, 3.84 mm |
|---|---|
| Die Set Two hex sizes | 4.06 mm, 4.52 mm, 5.41 mm |
| Tool frame material | High carbon steel |
| Handle type | Soft padded handles |
Die Set One covers 2.67 mm, 3.25 mm and 3.84 mm hex sizes.
Die Set Two covers 4.06 mm, 4.52 mm and 5.41 mm hex sizes.
It is suitable for all markets using coaxial cable assemblies, including small cable runs, prototypes, field installation, and engineering labs.
