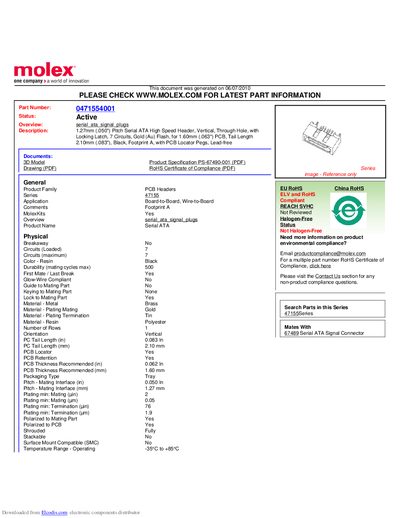

Specification sheet for Molex 0471554001 Serial ATA Signal Plug with dimensions, electrical ratings and compliance details.
The Molex 0471554001 Serial ATA Signal Plug is a 1.27 mm (0.050") pitch, vertical, through‑hole header with a locking latch. It provides 7 high‑speed SATA circuits, a 2.10 mm tail length, and is designed for 1.60 mm (0.063") PCB thickness.
The part is constructed from brass with gold flash mating contacts and tin‑plated termination, supports up to 1.5 A per contact at 15 V, and operates from –35 °C to +85 °C. It complies with EU and China RoHS requirements and includes PCB locator pegs for accurate placement.
| Pitch | 1.27 mm (0.050") |
|---|---|
| Number of Circuits | 7 |
| Tail Length | 2.10 mm |
| Recommended PCB Thickness | 1.60 mm (0.062") |
| Operating Temperature Range | -35 °C to +85 °C |
| Maximum Current per Contact | 1.5 A |
| Maximum Voltage | 15 V |
| Material (Body) | Brass |
| Mating Plating | Gold (Au) Flash |
| Termination Plating | Tin |
| RoHS Compliance | EU RoHS, China RoHS |
The plug has a 1.27 mm (0.050") pitch.
It provides 7 circuits.
The recommended PCB thickness is 1.60 mm (0.062").
It operates from –35 °C to +85 °C.
