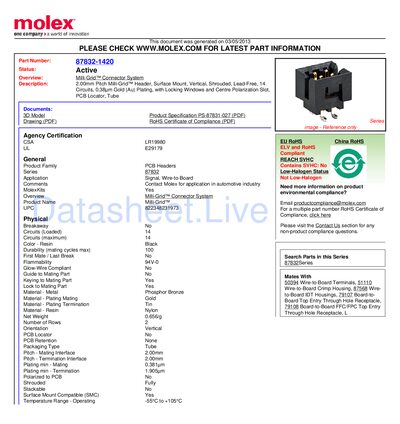

The Molex 87832-1420 Milli-Grid™ Connector System datasheet details specifications, features, and compliance information.
The document provides an overview of the Milli-Grid™ Connector System, a 2.00 mm pitch, surface‑mount, vertical, shrouded header with 14 circuits and gold plating. It lists key physical attributes such as orientation, material composition, and packaging type.
Technical data include electrical limits, temperature range, and compliance certifications (RoHS, CSA, UL). Additional references to 3‑D models, drawings, and certification PDFs are provided for design engineers.
| Pitch | 2.00 mm |
|---|---|
| Number of Circuits | 14 (maximum) |
| Orientation | Vertical |
| Operating Temperature Range | -55 °C to +105 °C |
| Maximum Current per Contact | 2 A |
| Maximum Voltage | 125 V |
The connector has a 2.00 mm pitch.
It supports up to 14 circuits.
The connector operates from –55 °C to +105 °C.
Yes, the connector is RoHS compliant.
