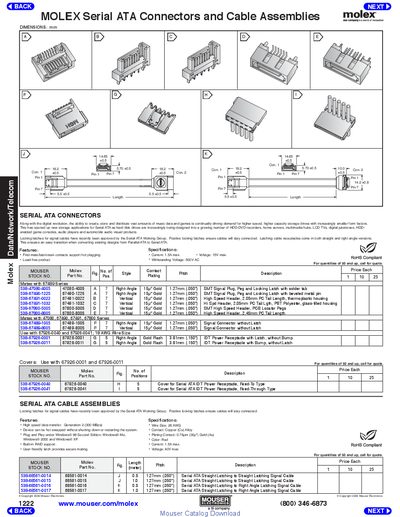

Molex Serial ATA Connectors and Cable Assemblies are available in a variety of right-angle and vertical configurations. They feature first-mate/last-break contacts for hot plugging, gold flash plating to prevent corrosion, and a variety of termination options.
The document lists Molex Serial ATA connector and cable assembly part numbers, including right‑angle and vertical styles, with details such as gold plating, pitch, and housing material. It also describes features like first‑mate/last‑break contacts for hot‑plugging and positive locking latches.
Technical specifications are given for current, voltage, wire size, contact plating, and dimensions, along with optional covers for power receptacles. The sheet serves as a reference for selecting the appropriate Molex Serial ATA components for various applications.
| Maximum Current | 1.5 A max |
|---|---|
| Maximum Voltage | 15 V max |
| Withstanding Voltage | 500 V AC |
| Wire Size | 26 AWG |
| Contact Plating | 0.76 µm (30 µ") Gold |
| Hot‑plug Support | Yes, first‑mate/last‑break contacts |
The connectors are rated for a maximum current of 1.5 A.
They support up to 15 V (some cable assemblies are rated up to 40 V).
Yes, the first‑mate/last‑break contacts are designed to support hot plugging.
