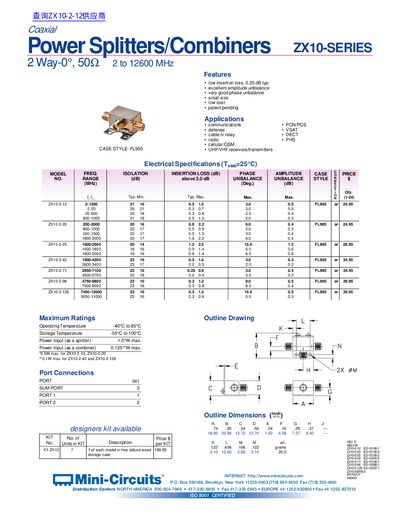

Mini-Circuits ZX10-Series Coaxial Power Splitter/Combiner Datasheet

Technical specifications and electrical data for the Mini-Circuits ZX10-Series 2-way coaxial power splitters/combiners covering frequency ranges from 2 to…

Brand: Mini-Circuits
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 133 KB
Published: 02 July, 2012
Updated: 12 October, 2026
MD5 checksum: 981EDD0FF497590C0CDB8CDBB48B5122
PDF: Mini-Circuits ZX10-Series Coaxial Power Splitter/Combiner Datasheet PDF

About this manual

This document provides technical specifications for the Mini-Circuits ZX10-Series, which includes 2-way-0° coaxial power splitters and combiners. The series is designed for applications in communications, defense, cable TV relay, radio, and cellular/GSM systems, offering low insertion loss and excellent amplitude unbalance.

What's inside

Applications
Features
Electrical Specifications
Maximum Ratings
Outline Drawing
Outline Dimensions

Specifications

Frequency Range (ZX10-2-12)	2 to 12600 MHz
Operating Temperature	-40 °C to 85°C
Storage Temperature	-55 °C to 100°C
Power Input (as a splitter)	1.0*W max.
Power Input (as a combiner)	0.125**W max.

Frequently asked questions

What is the operating temperature range for this splitter/combiner?

The device operates between -40 °C and 85°C.

How much power can be input when used as a splitter?

The maximum power input is 1.0 W, though it is limited to 0.5 W for specific models.

What are the dimensions of the FL905 case style?

The outline dimensions are 24.95 inches by 3.0 inches.

Download PDF (133 KB)
