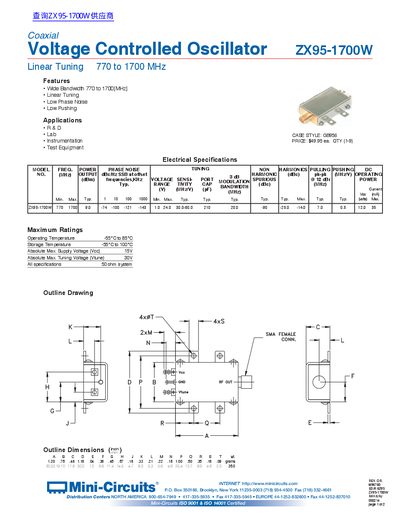

This document provides information on the maximum ratings, electrical specifications, and outline dimensions of the ZX95-1700W voltage controlled oscillator produced by Mini-Circuits.
The document describes the Mini-Circuits ZX95-1700W, a Coaxial Voltage Controlled Oscillator designed for R&D, lab, instrumentation, and test equipment applications. Key features include a wide bandwidth from 770 to 1700 MHz, linear tuning capability, low phase noise, and low pushing characteristics.
| Frequency Range | 770 to 1700 MHz |
|---|---|
| Tuning Type | Linear Tuning |
| Operating Temperature Range | -55°C to 85°C |
The device operates from 770 to 1700 MHz.
The absolute maximum supply voltage is 15V and the tuning voltage is 30V.
The unit operates between -55°C and 85°C.
