VLFX-105 low pass filter, operating temperature -55°C to 100°C, maximum power input 10W, maximum frequency 20GHz, very good isolation, 21 sections, temperature stable LTCC internal structure, patent pending, re-entry frequency > 20GHz, rugged 304 stainless steel housing.

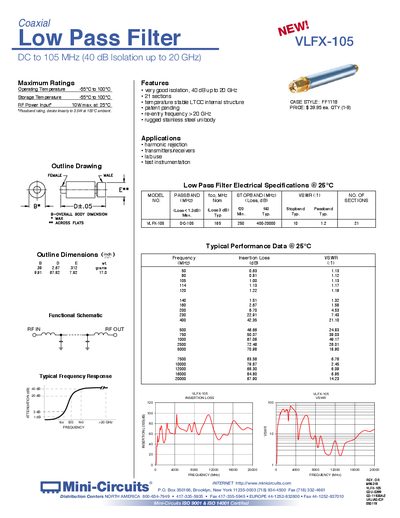

The Mini-Circuits VLFX-105 is a new coaxial low pass filter designed for applications requiring harmonic rejection in transmitters and receivers. It features a rugged stainless steel unibody construction with a temperature stable LTCC internal structure.
Key specifications include a passband from DC to 105 MHz, with stopband isolation of at least 40 dB extending up to 20 GHz. The device operates within a temperature range of -55°C to 100°C and utilizes a 21-section filter design.
| Passband | DC to 105 MHz |
|---|---|
| Stopband Isolation | 40 dB up to 20 GHz |
| Number of Sections | 21 sections |
| Case Style | FF1118 |
The device operates from -55°C to 100°C.
It handles a maximum of 10W at 25°C.
The filter contains 21 sections.
