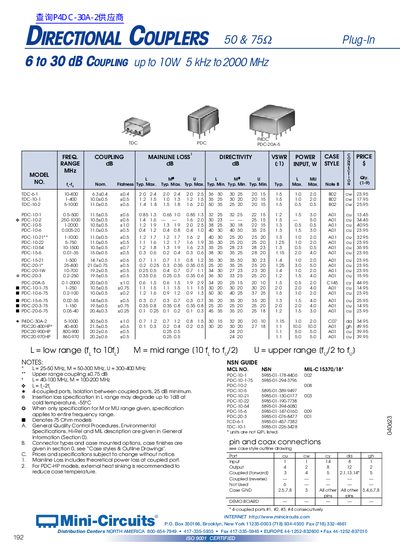

This document is the datasheet of Mini-Circuits TDC-6-1, TDC-10-1, TDC-10-2, PDC-10-1
This document is a product datasheet for Mini-Circuits directional couplers. It lists various model numbers such as TDC-6-1, PDC-20A-5, and PADC-30A-2, detailing their specific operating parameters.
The data includes frequency ranges from 0.005 MHz to 2000 MHz, coupling values up to 30 dB, and isolation specifications. The document also provides pricing information, connector types (AO, AOl, Ad), case styles, and notes regarding temperature effects on insertion loss.
The PDC-20A-5 model operates from 0.1 MHz to 2000 MHz.
