VLFX-1100 is a low pass filter from Minicircuits. It operates in the frequency range of DC-1100 MHz, with a bandwidth of 2300-20000 MHz, and an insertion loss of less than 1.2dB and an isolation of greater than 40 dB.

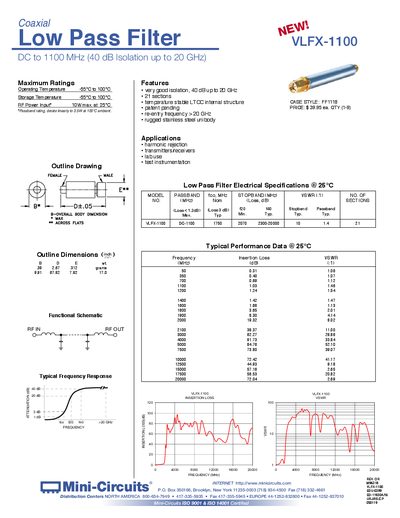

The document describes the Mini-Circuits VLFX-1100, a coaxial low pass filter designed for applications requiring harmonic rejection and transceiver use. It features an LTCC internal structure within a rugged stainless steel unibody case style FF1118.
Key specifications include a passband from DC to 1100 MHz with less than 1.2 dB loss, and stopband attenuation of over 40 dB up to 20 GHz. The device operates in temperatures ranging from -55°C to 100°C.
| Passband | DC to 1100 MHz |
|---|---|
| Stopband Attenuation | >40 dB up to 20 GHz |
| Operating Temperature | -55°C to 100°C |
| Power Input Rating | 10W max. at 25°C |
The maximum power input rating is 10W at 25°C.
Yes, the stopband attenuation extends beyond 20 GHz.
