This document is about the electrical specifications of a low pass filter, describing its maximum operating temperature, storage temperature, RF power input, etc. In addition, it provides typical performance data and outline dimensions.

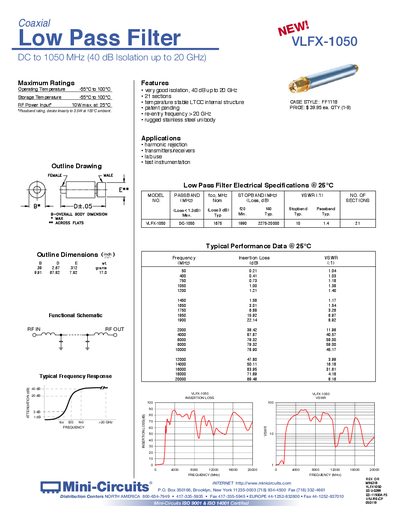

The document describes the Mini-Circuits VLFX-1050, a DC to 1050 MHz low pass filter featuring very good isolation of 40 dB up to 20 GHz. It utilizes a rugged stainless steel unibody construction with an LTCC internal structure and is designed for applications such as harmonic rejection in transmitters/receivers and test instrumentation.
The datasheet provides comprehensive electrical specifications including passband, stopband frequencies, VSWR, and insertion loss across the frequency range from DC to 20 GHz. It also lists maximum ratings, operating temperature ranges of -55°C to 100°C, and physical outline dimensions.
| Isolation | 40 dB up to 20 GHz |
|---|---|
| Operating Temperature | -55°C to 100°C |
| Maximum Power Input | 10W max. at 25°C |
| Number of Sections | 21 sections |
The device operates from -55°C to 100°C.
The maximum RF power input is 10W at 25°C.
The filter measures 39 mm by 67.812 mm.
