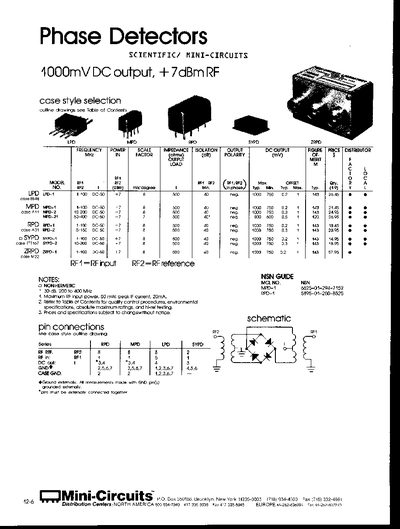

This document provides the specifications for Mini-Circuits phase detector families such as LPD, MPD, RPD and SYPD. It lists frequency ranges, DC output levels, input power limits, impedance, and isolation for each model.
Additional information includes pin‑connection diagrams, case‑style outline drawings, and contact details for Mini‑Circuits distribution centers in North America and Europe.
| Maximum RF input power | 50 mW |
|---|---|
| Peak IF current | 20 mA |
| Frequency range (LPD model) | 1‑100 MHz |
| Impedance | 50 Ω |
The maximum RF input power is 50 mW.
The peak IF current rating is 20 mA.
Mini‑Circuits can be contacted at P.O. Box 350166, Brooklyn, New York 11236‑0003, phone (718) 934‑4500.
