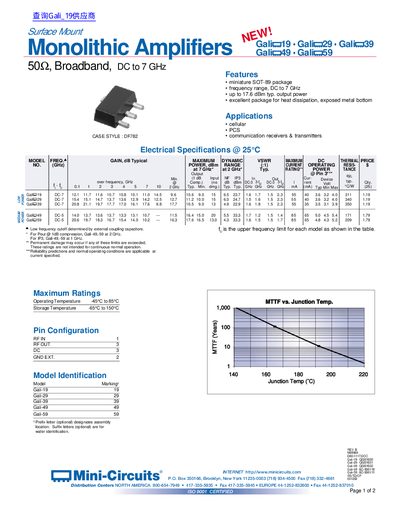

This document is a specification sheet for Mini-Circuits Gali-19, Gali-29, Gali-39, Gali-49, Gali-59
This datasheet details the electrical specifications and applications for Mini-Circuits' Gali series monolithic amplifiers. The models cover frequencies from DC to 7 GHz with output powers up to 17.6 dBm. They are designed for cellular, PCS, and communication receivers/transmitters. The document includes pin configurations, biasing configurations, and thermal ratings. Package style is SOT-89 with exposed metal bottom for heat dissipation.
| Frequency Range | DC to 7 GHz |
|---|---|
| Output Power | up to 17.6 dBm typ. |
| Package | SOT-89 |
| Operating Temperature | -45°C to 85°C |
| Storage Temperature | -65°C to 150°C |
DC to 7 GHz.
Up to 17.6 dBm typical.
