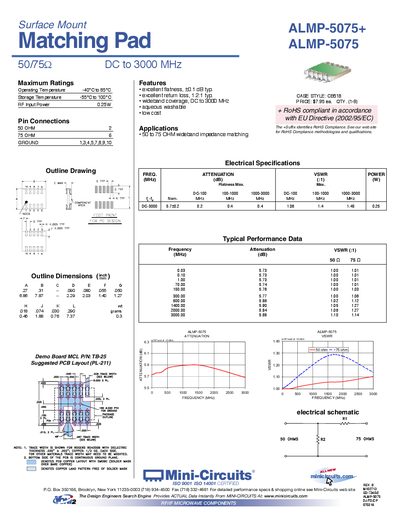

almp-5075+ is a 50/75 ohm broadband impedance matching pad from mini-circuits. It operates over a frequency range of dc to 3000mhz and features excellent flatness and return loss characteristics. Power consumption is 0.25w. Applications include 50 to 75 ohm broadband impedance matching.
The ALMP-5075+ is a surface‑mount matching pad designed for 50 Ω and 75 Ω impedance applications. It offers excellent flatness (+0.1 dB typ.) and low return loss (1.2:1 typ.) across a wide frequency range from DC to 3000 MHz.
Maximum ratings include an operating temperature of 40 °C to 85 °C, storage temperature of 55 °C to 100 °C, and a maximum RF input power of 0.25 W. The device is ROHS compliant and is supplied in a CB518 case style for easy PCB integration.
| Operating Temperature | 40°C to 85°C |
|---|---|
| Storage Temperature | 55°C to 100°C |
| RF Input Power | 0.25 W |
| Impedance (50 Ω pins) | 2 pins |
| Impedance (75 Ω pins) | 6 pins |
| Frequency Range | DC to 3000 MHz |
| Flatness | +0.1 dB typ. |
| Return Loss | 1.2:1 typ. |
| ROHS Compliance | Yes |
The device operates from 40 °C to 85 °C.
The maximum RF input power is 0.25 W.
It covers from DC up to 3000 MHz.
Yes, it is ROHS compliant.
