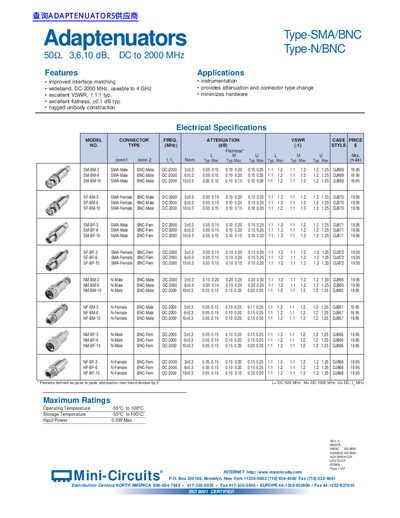

This document is a datasheet for Mini-Circuits adaptenuators designed to provide attenuation and change connector types. The devices support various combinations of SMA, N, and BNC connectors with frequencies up to 2000 MHz (extendable to 4 GHz). Key features include improved interface matching, excellent VSWR of 1.1:1 typical, and rugged unibody construction.
| Frequency Range | DC to 2000 MHz |
|---|---|
| VSWR | 1.1:1 typ. |
| Flatness | +0.1 dB typ. |
| Operating Temperature | -55°C to 100°C |
| Input Power | 0.5W Max. |
The units can operate from -55°C to 100°C.
The maximum input power is 0.5W.
