This datasheet provides information on LFCN-490, including outline drawing, maximum ratings, pin connections, features, applications, etc.

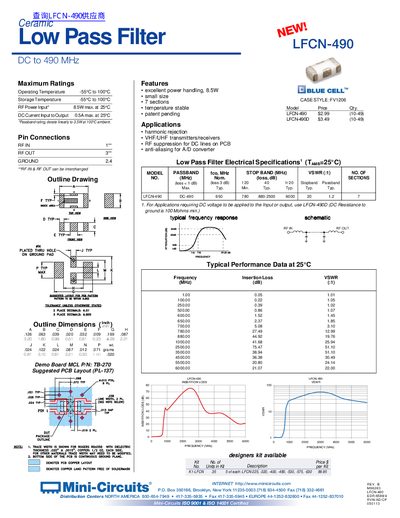

This document is a datasheet for the Mini-Circuits LFCN-490, a ceramic low pass filter designed for frequencies from DC to 490 MHz. Key features include excellent power handling up to 8.5W, a compact FV1206 case style, and seven internal sections.
| Passband Frequency Range | DC to 490 MHz |
|---|---|
| Maximum RF Power Input | 8.5W max at 25°C |
| Number of Sections | 7 sections |
| Case Style | FV1206 |
Yes, the RF IN & RF OUT can be interchanged.
The DC resistance to ground is a minimum of 100 Mohms.
