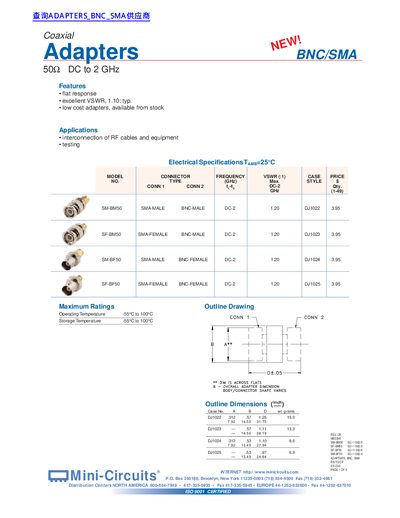

Mini-Circuits ® BNC/SMA adapters are low cost adapters available from stock and are used for interconnecting RF cables and equipment. They feature flat response and excellent VSWR over the DC to 2 GHz range.
The Mini‑Circuits BNC/SMA coaxial adapters are 50 Ω components designed for DC‑to‑2 GHz operation. They feature a flat frequency response, typical VSWR of 1.10, and low insertion loss, making them suitable for interconnecting RF cables and equipment in testing and measurement applications.
The adapters are offered in several connector configurations (SMA‑female/BNC‑male, SMA‑male/BNC‑female, etc.) and include detailed electrical specifications such as operating temperature range, VSWR curves, and insertion‑loss graphs. Pricing and availability information are also provided for each model.
| Frequency range | DC‑2 GHz |
|---|---|
| Typical VSWR | 1.10 |
| Operating temperature | -55 °C to 100 °C |
| Connector configurations | SMA‑female/BNC‑male, SMA‑male/BNC‑female, etc. |
| Insertion loss (low frequency) | 0.0 dB |
They operate from DC up to 2 GHz.
The typical VSWR is 1.10.
They can be used from –55 °C to 100 °C.
