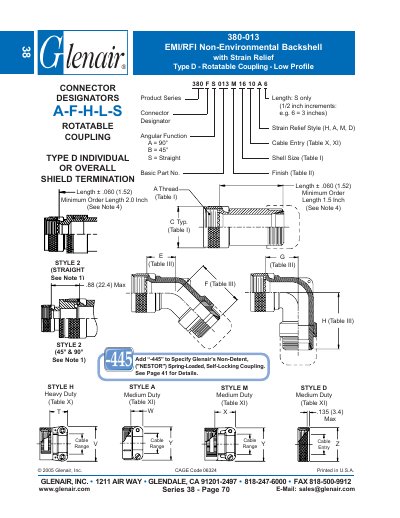

This document is a detailed information manual for the Glenair 380-013 EMI/RFI Non-Environmental Backshell with Strain Relief Type D - Rotatable Coupling - Low Profile product.
The 380-013 backshell is part of Glenair's Series 38 connector family. It provides EMI/RFI shielding, a non‑environmental design, and a rotatable coupling for flexible installation. The backshell incorporates a medium‑duty strain‑relief style (Type D) and supports various cable entry configurations.
Key specifications include a minimum order length of 2.0 inches, shell size designation H, maximum cable entry of 0.780 in (19.8 mm) for dash 04, and standard finishes such as Cadmium Plate in Olive Drab. Detailed tables list elbow dimensions, cable ranges, and additional finish options.
| Strain Relief Style | Type D (Medium Duty) |
|---|---|
| Maximum Cable Entry (Dash 04) | 0.780 in (19.8 mm) |
| Shell Size Designation | H |
| Standard Finish | Cadmium Plate, Olive Drab |
| Minimum Order Length | 2.0 inches |
The backshell uses a Type D medium‑duty strain‑relief style.
The maximum cable entry for dash 04 is 0.780 inches (19.8 mm).
Available finishes include Cadmium Plate in Olive Drab, Electroless Nickel, and other options listed in the standard finishes table.
