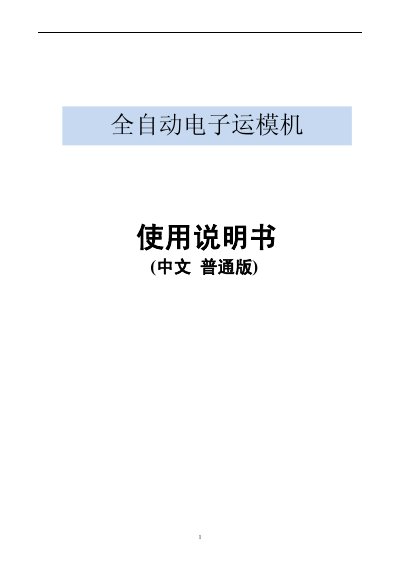

This manual provides operating instructions, functions, troubleshooting and specifications for the fully automatic electronic embroidery machine.
The manual describes the operation panel layout, basic controls and how to select and stitch patterns. It explains the stitching page settings, including needle spacing, speed adjustment, tension control, and thread handling.
Additional sections cover the communication and mode interfaces, system testing procedures, error code listings, and a detailed troubleshooting guide for common faults such as motor failures, sensor issues, and pneumatic problems. This manual is written in Chinese.
| Maximum stitching speed | 2800 stitches/min |
|---|---|
| Maximum needle spacing | 12.7 mm |
| Power consumption | 500 W |
| Supply voltage | 220 V ± 15% |
| Supply frequency | 50/60 Hz |
| Operating temperature range | 0 °C – 40 °C |
| Relative humidity range | 40 % – 50 % |
The machine can stitch up to 2800 stitches per minute.
Press the reset button on the machine head or the emergency stop button to clear the error and return to the previous screen.
Check the X‑axis driver alarm light, replace a blown fuse, and if necessary replace the driver or motor.
The maximum needle spacing is 12.7 mm as specified in the technical specifications.
