Langyuxin SIMPK01/02 Dual/Single Axis Robotic Arm Control System Operation Manual

The Langyuxin SIMPK01/02 operation manual provides safety guidelines, installation steps, and detailed instructions for using the dual/single‑axis robotic…

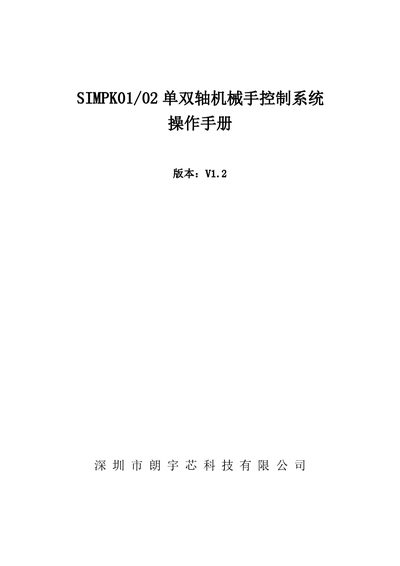

Langyuxin SIMPK01/02 Dual/Single Axis Robotic Arm Control System Operation Manual - cover page
Brand
朗宇芯
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
48
File format
PDF
File size
3.2 MB
Published
03 October, 2026
Updated
03 October, 2026
MD5 checksum
565EA9F32056828EAC5119E15F86C0C5
PDF
Langyuxin SIMPK01/02 Dual/Single Axis Robotic Arm Control System Operation Manual PDF

About this manual

This manual covers safety reminders, system installation, and comprehensive operating instructions for the SIMPK01/02 dual/single‑axis robotic arm control system. It includes detailed descriptions of the control panel, manual and automatic operation modes, function settings, servo parameters, and programming guidance.

The document also provides wiring diagrams for various servo drivers, I/O connections, and integration with injection molding machines, along with fault alarm handling and maintenance recommendations to ensure reliable and safe operation. This manual is written in Chinese.

What's inside

  • Safety Reminders and System Installation
  • Operation Instructions
  • Standard Motion Programs
  • Fault Alarms and Handling
  • I/O Input/Output Wiring Diagrams
  • Servo Driver Wiring Instructions
  • I/O Board Installation Dimensions
  • Injection Molding Machine and Robot Wiring Diagram

Specifications

Pulse output maximum frequency500 Kpps
Recommended cabinet temperature< 50 °C

Frequently asked questions

How is the origin return performed before automatic operation?

After the system is powered on, press the origin return key on the control panel; the system will not allow automatic operation until the origin return is completed.
