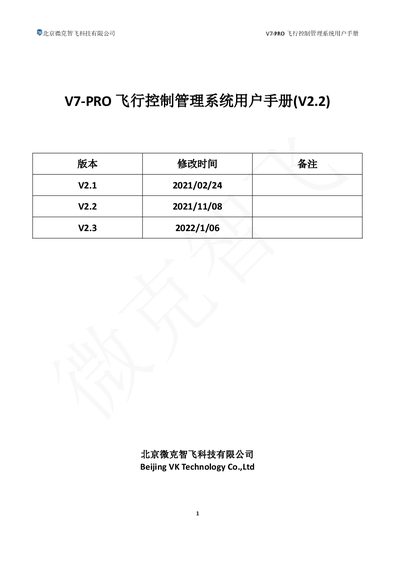

User manual for the VK Technology V7-PRO UAV flight control system covering installation, configuration, flight tuning and operation.
The V7-PRO Flight Control Management System manual provides step‑by‑step instructions for installing the main controller, GNSS modules, radar and optional RTK base stations on a UAV. It includes wiring diagrams, mounting directions, and safety notes to ensure stable flight performance.
Additional sections guide users through flight calibration, route planning, task execution, multi‑vehicle coordination, firmware upgrades, data download, playback, and follow‑flight modes. Appendices describe LED indicator codes, engine data protocols, UDP forwarding, and CRC16 calculation details. This manual is written in Chinese.
| Main controller size | 114 × 53 × 26 mm |
|---|---|
| Main controller weight | 165 g |
| Main controller supply voltage | 10–58 V |
| GNSS‑A size | 64 × 64 × 14 mm |
| GNSS‑A mode | GPS+GLONASS+BD |
| GNSS‑B size | 64 × 64 × 14 mm |
| GNSS‑B mode | GPS+GLONASS+BD |
| Optional radar size | 66 × 74 × 19.3 mm |
| Optional radar weight | 110 g |
| Radar detection range | 1.5–20 m |
| Radar horizontal beam width | ± 17° |
| Radar vertical beam width | ± 3° |
| RTK‑A‑MP size | 80 × 48 × 25 mm |
| RTK‑A‑MP weight | 150 g |
| RTK‑A‑MP mode | GPS+GLONASS+BD |
| RTK‑A‑MPH size | 85 × 49 × 21 mm |
| RTK‑A‑MPH weight | 100 g |
| RTK‑A‑MPH supply voltage | 10–58 V |
| RTK‑A‑MPH capability | Supports dual‑antenna positioning |
The radar can detect obstacles from 1.5 m up to 20 m away.
The GNSS‑A module measures 64 × 64 × 14 mm and weighs 60 g.
