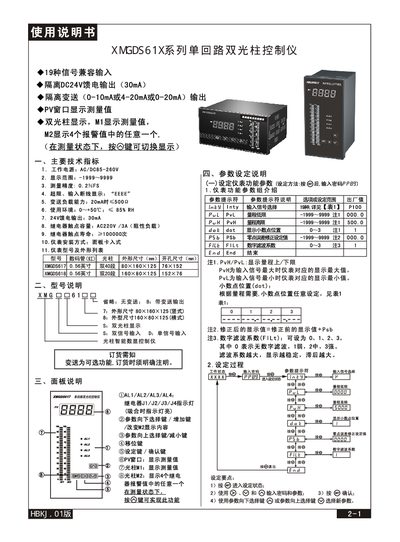

User manual for the Huibang XMGDS61X controller detailing specifications, installation, and parameter settings.
The XMGDS61X series single‑loop dual light‑column controller provides up to 19 compatible input signals, isolated DC 24 V power output (≤30 mA), and dual light‑column displays for measurement values and alarm indicators. It supports AC/DC 85‑260 V power, a display range of –1999 to 9999, and measurement accuracy of 0.2 % FS.
The manual describes technical specifications, panel layout, parameter configuration methods, and relay output settings. It also includes wiring diagrams, dimension tables for different models, and instructions for setting up transmission functions and alarm thresholds. This manual is written in Chinese.
| 工作电源 | AC/DC 85‑260 V |
|---|---|
| 显示范围 | -1999 ~ 9999 |
| 测量精度 | 0.2 % FS |
| 供电输出 | 24 V 30 mA |
| 继电器触点容量 | AC 220 V / 3 A (阻性负载) |
| 继电器触点寿命 | 100 000 次 |
| 使用环境温度 | 0 ~ +50 °C |
| 相对湿度 | 85 % RH |
| 仪表安装方式 | 面板卡入式 |
| 外形尺寸 (XMGDS617) | 80 × 160 × 125 mm |
| 外形尺寸 (XMGDS618) | 160 × 80 × 125 mm |
The controller operates on AC or DC power from 85 V to 260 V.
The display can show values from –1999 to 9999.
The relay contacts are rated for 100 000 operations.
The device works between 0 °C and +50 °C and up to 85 % relative humidity.
