Linghou Robot LR4-R560 Mechanical Use and Maintenance Manual

Mechanical use and maintenance guide for the Linghou Robot LR4‑R560 industrial robot.

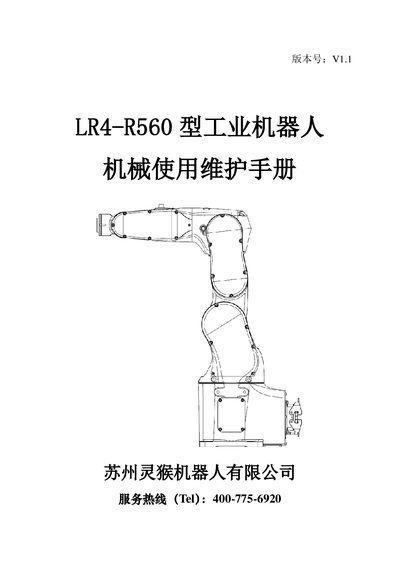

Linghou Robot LR4-R560 Mechanical Use and Maintenance Manual - cover page
Brand
Linghou Robot
Category
Industrial Robot
Document type
Service Manual
Language
Chinese
Pages
43
File format
PDF
File size
2.6 MB
Published
01 October, 2026
Updated
01 October, 2026
MD5 checksum
4E4978479D6FC68D937DBD97B3FE0E2C
PDF
Linghou Robot LR4-R560 Mechanical Use and Maintenance Manual PDF

About this manual

This manual provides safety guidelines, basic specifications, installation procedures, and detailed maintenance instructions for the LR4‑R560 six‑axis industrial robot. It covers required protective equipment, emergency stop procedures, and safe handling of the robot during adjustment, operation, and repair.

The document also includes mechanical performance data, recommended torque values for fasteners, oil‑lubrication schedules, and procedures for calibrating mechanical zero points. Appendices list torque tables, spare parts, and part numbers for service reference. This manual is written in Chinese.

What's inside

  • Safety
  • Basic Description
  • Installation and Handling
  • Inspection and Maintenance
  • Mechanical Performance Parameters
  • Appendices

Specifications

Maximum payload4 kg
Maximum arm length560 mm
IP protection ratingIP68
Maximum air pressure for external hoses0.7 MPa

Frequently asked questions

What are the recommended torque values for M5 screws on the robot?

For M5 screws, the recommended torque is 9.01 N·m for steel parts and 7.35 N·m for aluminum parts.
