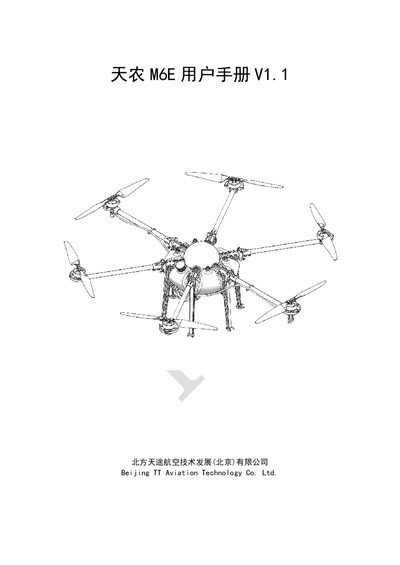

The TT Aviation M6E user manual provides safety guidelines, setup steps, operation instructions and technical specifications for the plant‑protection UAV.
This manual covers all aspects of using the TT Aviation M6E agricultural drone, including safety notices, pre‑flight checks, battery handling, and detailed operating procedures. It also explains how to configure the companion mobile app, calibrate sensors such as the magnetic compass, and manage the spraying system.
Additional sections describe the intelligent battery, charging station, remote controller functions, flight modes, and LED indicator meanings, plus technical support contact information for troubleshooting and maintenance. This manual is written in Chinese.
| Empty weight (without battery) | 9 kg |
|---|---|
| Standard take‑off weight | 23 kg |
| Maximum thrust‑to‑weight ratio | 2.25 |
| Maximum operating speed | 10 m/s |
| Flight time per sortie | 6–12 min |
| Maximum power consumption | 12000 W |
| Maximum climb speed | 5 m/s |
| Maximum descent speed | 3 m/s |
| Hover power consumption | 3100 W |
| Pesticide tank capacity | 10 L |
| Recommended operating temperature | 10–35 °C |
| Maximum flight altitude | 3500 m |
The M6E can carry up to 10 L of pesticide in its onboard tank.
The drone is designed to operate in ambient temperatures from 10 °C to 35 °C.
The drone can safely fly up to a maximum altitude of 3500 m.
