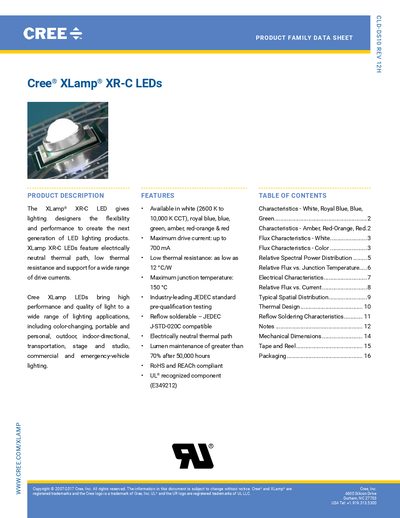

This datasheet provides technical specifications, electrical characteristics, and flux data for the Cree XLamp XR-C LED family in various colors.
The Cree XLamp XR-C LED is a high-performance lighting component designed for a wide range of applications, including color-changing, portable, outdoor, and transportation lighting. Key features include an electrically neutral thermal path, low thermal resistance, and support for drive currents up to 700 mA. The product is available in multiple color options, including white, royal blue, blue, green, amber, red-orange, and red, with specific characteristics defined for each.
| Maximum drive current | up to 700 mA |
|---|---|
| Low thermal resistance | as low as 12 °C/W |
| Maximum junction temperature | 150 °C |
| Lumen maintenance | greater than 70% after 50,000 hours |
| Thermal resistance (White, Royal Blue, Blue, Green) | 12 °C/W |
| Thermal resistance (Amber, Red-Orange, Red) | 15 °C/W |
| Viewing angle (FWHM) - white | 90 degrees |
| Viewing angle (FWHM) - royal blue, blue, green | 100 degrees |
| DC forward current - red-orange, red | 700 mA |
| DC forward current - amber | 350 mA |
The maximum drive current is up to 700 mA.
The maximum junction temperature is 150 °C.
Yes, the XR-C LED is RoHS and REACH compliant.
