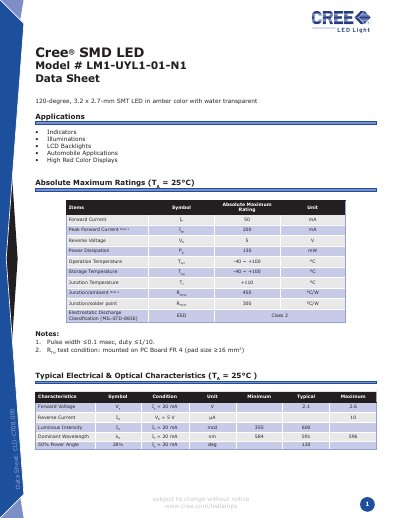

This document describes the features and characteristics of the Cree® SMD LED LM1-UYL1-01-N1 model. It is a 120-degree, 3.2 x 2.7-mm surface mount LED in amber color with water transparent. It is suitable for applications such as indicators, illuminations, LCD backlights, automobile applications, and high red color displays.
The Cree LM1-UYL1-01-N1 is a 120‑degree, 3.2 × 2.7 mm SMD LED offered in amber for indicators, LCD backlights, and automotive applications. The data sheet lists absolute maximum ratings, typical forward voltage, current, luminous intensity and dominant wavelength values.
Additional sections cover standard binning information, mechanical dimensions, and the kit number system used for ordering. Packaging options and RoHS compliance are also described, helping designers select the appropriate LED variant for their product. This manual is written in Chinese.
| Forward Current (IF) | 50 mA |
|---|---|
| Peak Forward Current (IFP) | 200 mA |
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (PD) | 130 mW |
| Forward Voltage (VF) at IF=20 mA | 2.1‑2.6 V |
| Operation Temperature | -40 °C to +100 °C |
| Junction Temperature (TJ) | +110 °C |
| Luminous Intensity (IV) at IF=20 mA | 355‑600 mcd |
The continuous forward current rating is 50 mA, and the peak forward current rating is 200 mA.
The LED is rated for operation from –40 °C to +100 °C.
LEDs are sorted into performance bins based on luminous intensity, dominant wavelength and forward voltage; standard bins are listed for LM‑UYL‑0‑N‑ at IF = 20 mA.
Available kits include LM1-UYL1-01-N1-00001, LM1-UYL1-01-N1-00002, LM1-UYL1-01-N1-00003, LM1-UYL1-01-N1-00011, and LM1-UYL1-01-N1-00012.
