This document provides technical specifications and applications of Cree® P4 LED model LP377PPG1-60G-03 LED lamp, including advertising signs, indicators, and message boards. The document includes the maximum ratings, typical electrical and optical characteristics of the LED lamp, and standard bins for LP377PPG1-60G-03.

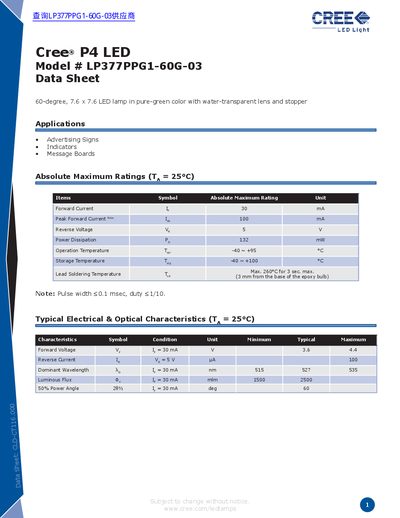

This document is a datasheet for the Cree LP377PPG1-60G-03 LED lamp. It describes a 60-degree, 7.6 x 7.6 mm pure-green LED with a water-transparent lens and stopper. The device is designed for applications such as advertising signs, indicators, and message boards.
| Dominant Wavelength | 515 nm to 535 nm |
|---|---|
| Luminous Flux | 1500 to 2500 mcd |
| Forward Current (Ih) | 30 mA |
| Peak Forward Current | 100 mA |
| Reverse Voltage (Ve) | 5 V |
| Power Dissipation (Pj) | 132 mW |
| Operation Temperature | -40 ~ +95 °C |
| Forward Voltage (Vf) | 3.6 V to 4.4 V |
The lamp is suitable for advertising signs, indicators, and message boards.
The lamp has a 60-degree half power angle.
