LM1-EPG1-01-N2 is a green LED from CREE. It has a 120° beam angle, a size of 3.2 x 2.7 mm, a maximum forward current of 25 mA, a maximum reverse voltage of 5 V, and a maximum power dissipation of 100 mW.

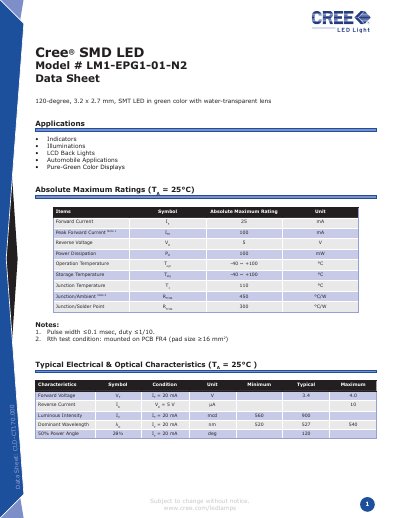

The Cree LM-EPG-0-N2 is a 120‑degree green SMD LED measuring 3.2 × 2.7 mm, intended for indicators, illumination, LCD back‑lights, automotive applications and pure‑green color displays. It features a water‑transparent lens and is supplied in various performance bins.
The datasheet lists absolute maximum ratings such as a forward current of 25 mA (peak 100 mA), reverse voltage of 5 V, power dissipation of 100 mW, and an operating temperature range of –40 °C to +100 °C. Typical electrical characteristics at 20 mA include a forward voltage of 3.4‑4.0 V, luminous intensity of 560‑900 mcd, and a dominant wavelength of 520‑540 nm. Mechanical dimensions are given in millimetres, and the product complies with RoHS directives.
| Forward Voltage (VF) at IF=20 mA | 3.4 V min – 4.0 V max |
|---|---|
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (PD) | 100 mW |
| Operating Temperature (Topr) | -40 °C to +100 °C |
| Junction Temperature (TJ) | 110 °C |
| Forward Current (IF) – absolute max | 25 mA |
| Peak Forward Current (IFP) | 100 mA |
| Luminous Intensity (IV) at IF=20 mA | 560 mcd – 900 mcd |
| Power Angle (2θ½) at IF=20 mA | 120 ° |
The absolute maximum forward current is 25 mA, with a peak forward current rating of 100 mA.
It can operate from –40 °C up to +100 °C.
Typical forward voltage ranges from 3.4 V (minimum) to 4.0 V (maximum) at 20 mA.
The LED delivers between 560 mcd and 900 mcd at a forward current of 20 mA.
