The CxxxRT230-S0200 product is a blue-green LED chip produced by Cree. It is small, low-voltage, and has superior performance. It is suitable for backlighting of portable electronic devices.
Cree’s RazerThin RT230 series offers small, low‑forward‑voltage InGaN LED chips designed for applications such as keypad backlighting, mobile phones, and automotive dashboards. The chips are built on Cree’s proprietary GeSiC® substrate, providing high efficiency and a Class 2 ESD rating.

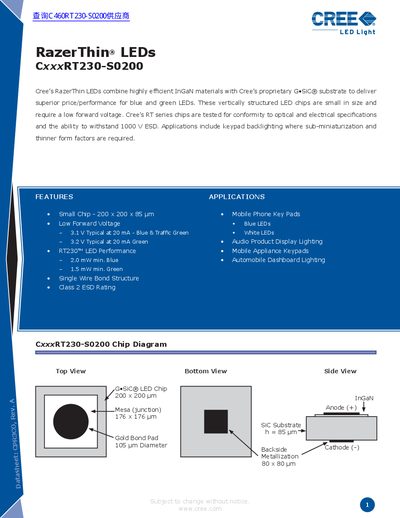

The handbook lists maximum electrical ratings, mechanical dimensions, binning information, and characteristic curves. It also includes detailed specifications for forward current, voltage, temperature ranges, and optical performance for each bin variant.
| DC Forward Current | 30 mA |
|---|---|
| Peak Forward Current (1/10 duty cycle @ 1 kHz) | 100 mA |
| LED Junction Temperature limit | 125 °C |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +100 °C |
| Typical Forward Voltage at 20 mA | 3.1 V |
The typical forward voltage is 3.1 V at 20 mA.
