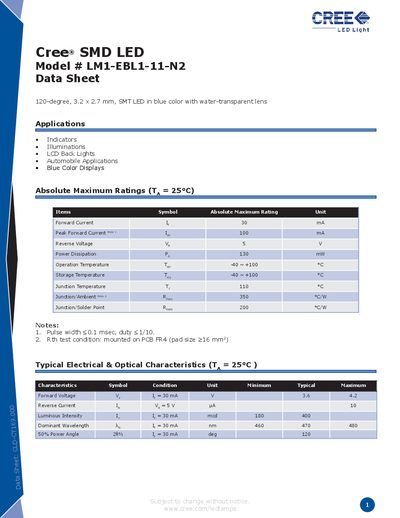

The LM1-EBL1-11-N2 is a blue SMD LED from Cree with a 120 degree beam angle and 3.2 x 2.7 mm dimensions.
The LM1-EBL1-11-N2 is a 120-degree, 3.2 × 2.7 mm surface‑mount blue LED used in indicators, LCD back‑lights, automotive lighting, and other applications. The datasheet lists its absolute maximum ratings, typical electrical and optical characteristics, and mechanical dimensions.
The document also covers binning and packaging options, RoHS compliance, safety warnings, and the kit number system for ordering. It includes graphs of forward/reverse current and voltage, as well as luminous intensity versus wavelength.
| Forward Current | 30 mA |
|---|---|
| Peak Forward Current | 100 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 130 mW |
| Operation Temperature | -40 °C to +100 °C |
| Junction Temperature | 110 °C |
| Luminous Intensity | 180 mcd (at 30 mA) |
| Dominant Wavelength | 460 nm (at 30 mA) |
| Power Angle | 28° |
The maximum forward current is 30 mA.
Yes, the LED meets RoHS requirements; hazardous substance levels are below the allowed limits.
Standard tape‑and‑reel packaging is offered, with custom packaging methods selectable as needed.
LEDs are sorted into performance bins based on color, forward voltage, and brightness, and are packaged in kits.
