LP377THR1-70G-01 is a high-red color LED lamp with a size of 7.6 x 7.6 mm and a 70-degree emission angle, suitable for advertising, signs, automotive lighting and other scenarios.

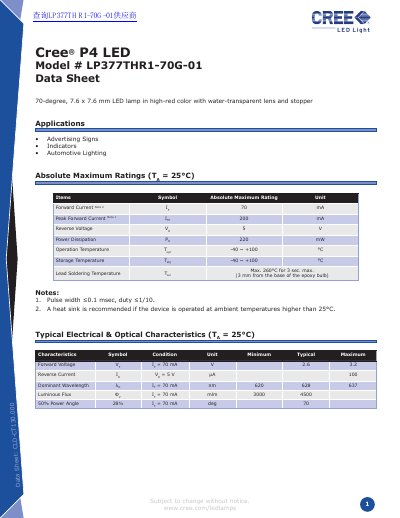

This document is a technical datasheet for the Cree LP377THR-70G-0, a 70-degree, 7.6 x 7.6 mm P4 LED lamp featuring a high-red color with a water-transparent lens. It is designed for applications including advertising signs, indicators, and automotive lighting. The document provides comprehensive data on absolute maximum ratings, typical electrical and optical characteristics, and standard performance bins for luminous flux, forward voltage, and dominant wavelength.
| Forward Current (IF) | 70 mA |
|---|---|
| Peak Forward Current (IFP) | 200 mA |
| Power Dissipation (PD) | 220 mW |
| Operation Temperature (Topr) | -40 ~ +100 °C |
| Storage Temperature (Tstg) | -40 ~ +100 °C |
| Dominant Wavelength | 620-637 nm |
The LED is intended for use in advertising signs, indicators, and automotive lighting.
For long term performance, the recommended drive currents are between 10mA and 50mA.
