CSD10060 is a 600 volt Schottky rectifier that features zero reverse recovery and zero forward recovery. It is used in switch mode power supplies, power factor correction and motor control applications.

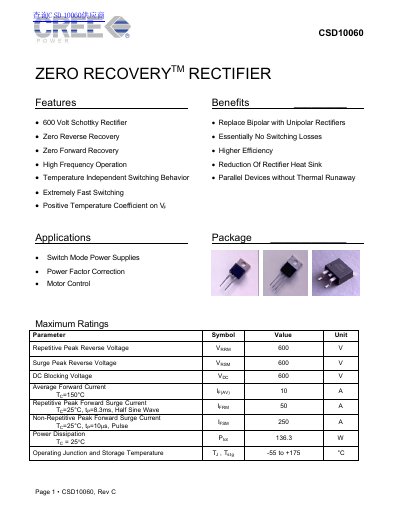

This document is a technical datasheet for the Cree CSD10060 Zero Recovery Rectifier. It describes a 600 Volt unipolar Schottky diode designed to replace bipolar rectifiers in applications such as switch mode power supplies, power factor correction, and motor control.
The datasheet provides maximum ratings including repetitive peak reverse voltage of 600V and average forward current up to 10A. It also lists electrical characteristics like forward voltage drop and total capacitance at various temperatures, along with thermal resistance values for the TO-220 and TO-263 packages.
| Repetitive Peak Reverse Voltage | 600 V |
|---|---|
| Average Forward Current | 10 A |
| Power Dissipation | 136.3 W |
| Operating Junction Temperature | -55 to +175 °C |
It is suitable for switch mode power supplies, power factor correction, and motor control.
No, it is a majority carrier diode with essentially no switching losses.
