This data sheet provides detailed specifications for the LP377PBL1-60G-03 product, including maximum operating current, maximum reverse voltage, maximum power dissipation, operating temperature range, storage temperature range, lead soldering temperature, pulse width and duty cycle.

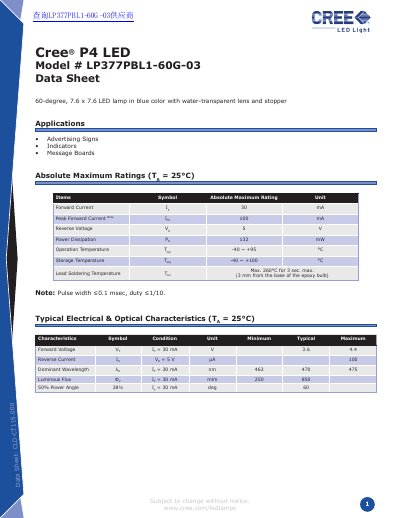

The document is a technical data sheet for the Cree P4 LED model LP377PBL-60G-03. It describes a 60-degree viewing angle, 7.6 x 7.6 mm blue LED lamp featuring a water-transparent lens and stopper. The text provides absolute maximum ratings, typical electrical characteristics (such as forward voltage and luminous flux), and standard binning information for sorting lamps by color, voltage, and brightness. This manual is written in Chinese.
| Forward Current (IF) | 30 mA |
|---|---|
| Peak Forward Current (IFP) | 100 mA |
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (PD) | 132 mW |
| Operation Temperature Range | -40 ~ +95 °C |
| Storage Temperature Range | -40 ~ +100 °C |
| Dominant Wavelength | 462 - 475 nm |
| Luminous Flux Range | 250 - 850 mlm |
| Viewing Angle (Half Power) | 60 deg |
This LED is suitable for advertising signs, indicators, and message boards.
Users should be cautioned not to stare at the light of this LED product because the bright light can damage the eye.
